TecnoSoft SPD - Riadiaci softvér pre SterilDisk a PasteurDisk
Management software for SterilDisk and PasteurDisk datalogger
The SPD software is the management program for the SterilDisk, PasteurDisk, SterilCyl, PasteurCyl, SterilCyl Radio and PasteurCyl Radio dataloggers.

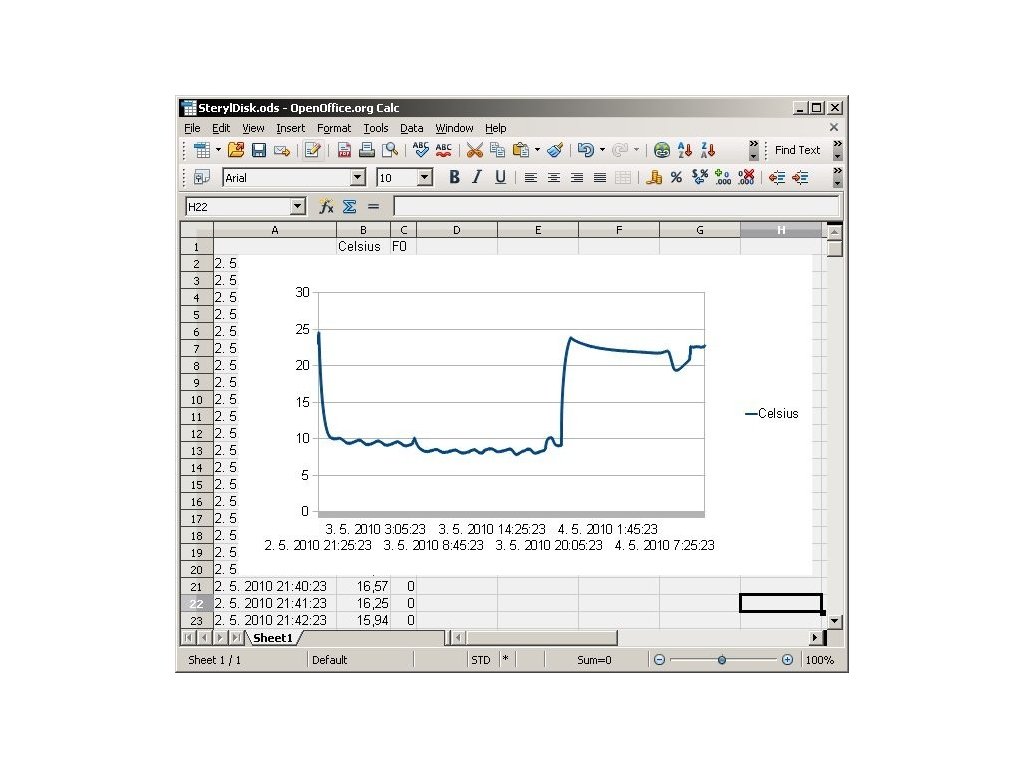

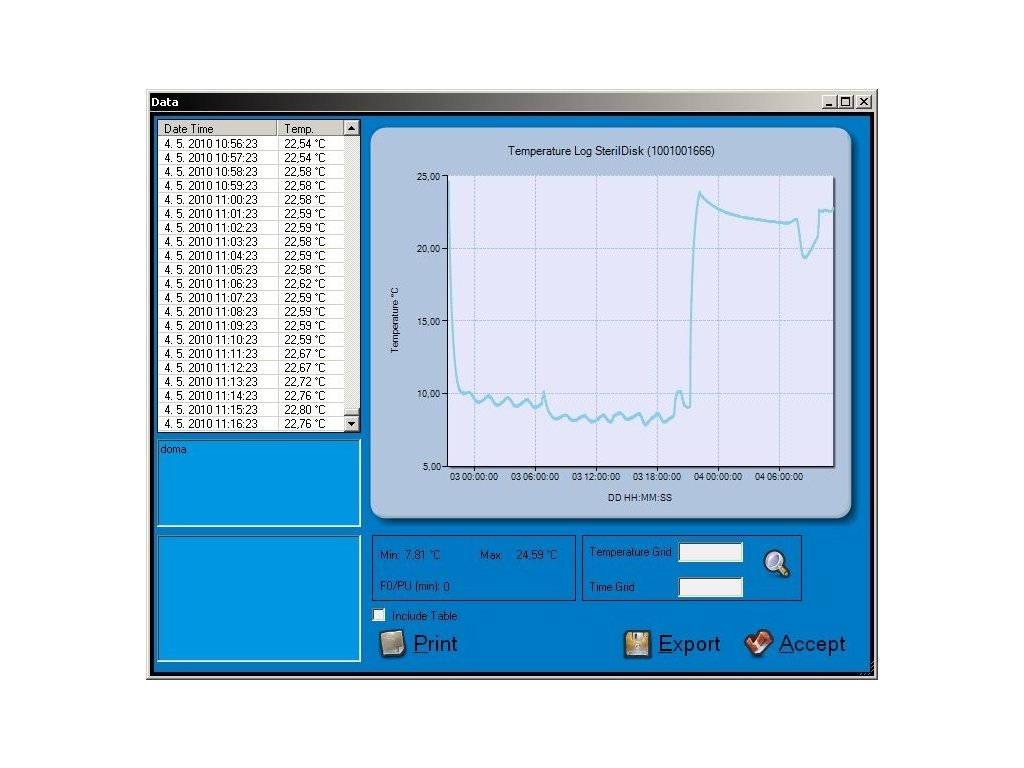

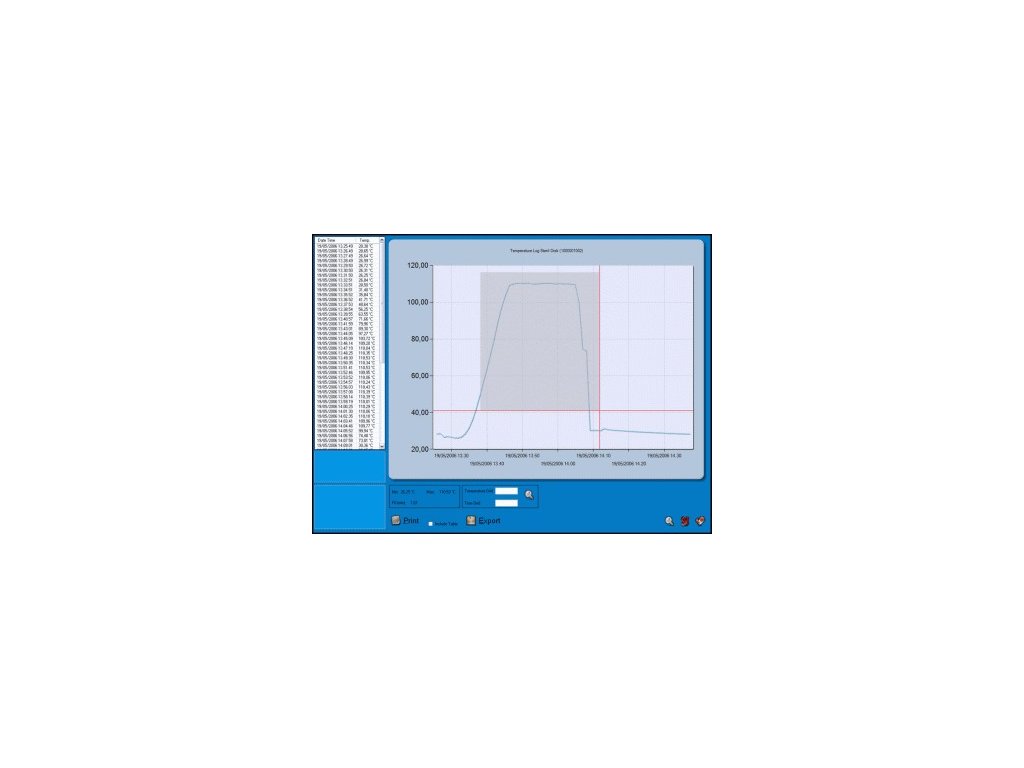

It"s easy to use, intuitive and full of options. The communication with the devices is made by the Disk Interface (serial or USB), that allows to start the loggers and download the data from them, setting also the start delay and some notes. Data are then displayed on graph, with zoom function, and table, exportable in Excel.
It"s easy to use, intuitive and full of options. The communication with the devices is made by the Disk Interface (serial or USB), that allows to start the loggers and download the data from them, setting also the start delay and some notes. Data are then displayed on graph, with zoom function, and table, exportable in Excel.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Široké možnosti
platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
Tovar skladom
odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.
The software calculates the F0 and the PU (pasteurisation units) of the process to evaluate the level of sterilisation or pasteurisation. In the configuration window it is possible to set the parameters for the F0 and PU calcualtion according to the process you want to monitor. The software, moreover, allows to print complete reports with graph, data table, device serial number, and other notes added by the user. Using an interface and devices produced from April 2008 you will be able to see the battery status of the connected device.
The SPD software supports the wireless datalogger for pasteurisation and sterilisation too, PasteurCyl Radio and SterilCyl Radio. Through the USB Radio Receiver you will be able to receive data real time from your process. You will see the data one after another, you will be able to assign an alarm profile (on F0/PU values and temeprature values to be reached) and you can choose up to 4 sensors (that can be selected any time) to display a graph both for the temperature and the dynamic F0/PU curve.
It is possible to download the user"s manual in PDF format and the last software update (the full software is necessary to run properly). Dowenload the file .zip and follow the instructions in the README.TXT inside it.
| Operating systems | Windows 2000 / XP / Vista |
| Data management | Missions sorted by start date and logger serial number |
| Data display | Graph (with zoom) and table (exportable into Excel) and report of all the data printing |
| Multi Graph Display | Two or more missions can be displayed on a single graph |
| Real time display | With the radio function it displays real time the temperature graph and the F0 or PU graph of up to 4 loggers choosed among all the loggers received. |
| F0 and PU | Automatically calculates the F0 and PU and the Z and N parameters of the formula can be set |
| CFR21 Part 11 compliant | Data cannot be changed |
| Communication | Serial (RS232) or USB |
| Languages | English, Italian, French, German, Spanish |
