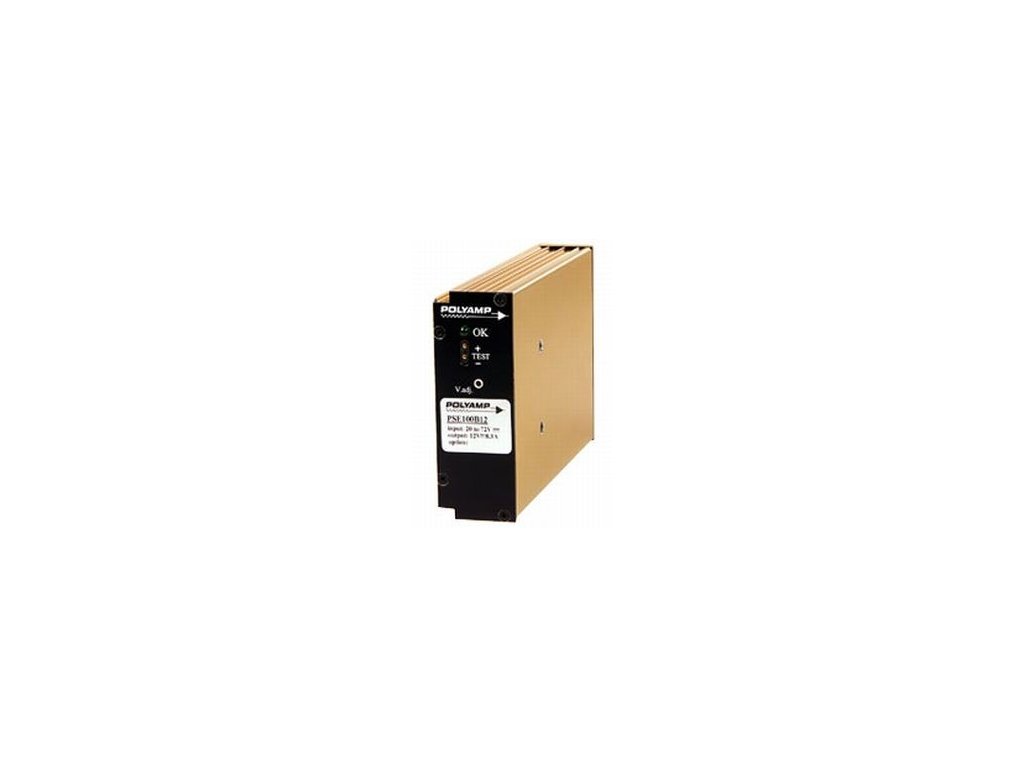

Polyamp PSE60 and PSE100 series with AC inputs
60W - 100W power supply PSU, Euro format, wall chassis, DIN mount
Input / Output
- One output voltage 5 to 48 Vd.c.
- 110 or 230Va.c. models 100W
- World wide AC input 60W
- Mechanical and pin compatible DC-input versions.
![Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/cart.png?65d4bf61)
![Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/card.png?65d4c037)
![Tovar skladom odosielame v deň objednávky (do 13:00)](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/parcel.png?65d4c238)
![Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/repair.png?65d4c103)
Operation
- High efficiency
- Operating temperature -25 to +70°C.
- Fully encapsulated IP20
- Convection cooled
Features
- Conformal coated.
- From front panel:
- Adjust the output voltage
- Measure the output voltage
- Output OK green LED
EMC
- EN61000-6-3 Emission.
- EN61000-6-2 Immunity.
- EN/IEC61000-4-4, 4kV.
- EN/IEC61000-4-5 level 2&3.
Nominal input |
Input voltage range |
Code |
100, 110, 220, 230 ,240 Va.c. |
85 - 264V |
ACW |
100, 110 Va.c. |
85 - 135V |
ACR |
220, 230, 240 Va.c. |
176 - 264V |
AC |
Output |
Input voltage range |
||||
Voltage |
Current |
Power |
85-264Va.c |
85-135Va.c |
176-264Va.c |
5V1 |
12.0A |
60W |
PSE60ACW5 |
|
|
5V1 |
20.0A |
100W |
|
PSE100ACR5 |
PSE100AC5 |
13.2V |
4.50A |
60W |
PSE60ACW13.2 |
|
|
13.2V |
7.60A |
100W |
|
PSE100ACR13.2 |
PSE100AC13.2 |
15V |
4.00A |
60W |
PSE60ACW15 |
|
|
15V |
6.70A |
100W |
|
PSE100ACR15 |
PSE100AC15 |
24V |
2.50A |
60W |
PSE60ACW24 |
|
|
24V |
4.20A |
100W |
|
PSE100ACR24 |
PSE100AC24 |
48V |
1.30A |
60W |
PSE60ACW48 |
|
|
48V |
2.10A |
100W |
|
PSE100ACR48 |
PSE100AC48 |
1 -25 to +55°C 100% load, for 70°C derate to 75%.
How to read our product code:
E.g. PSE100 AC24
PSE100 = family code
AC= input range code AC
24 = output voltage 24V
