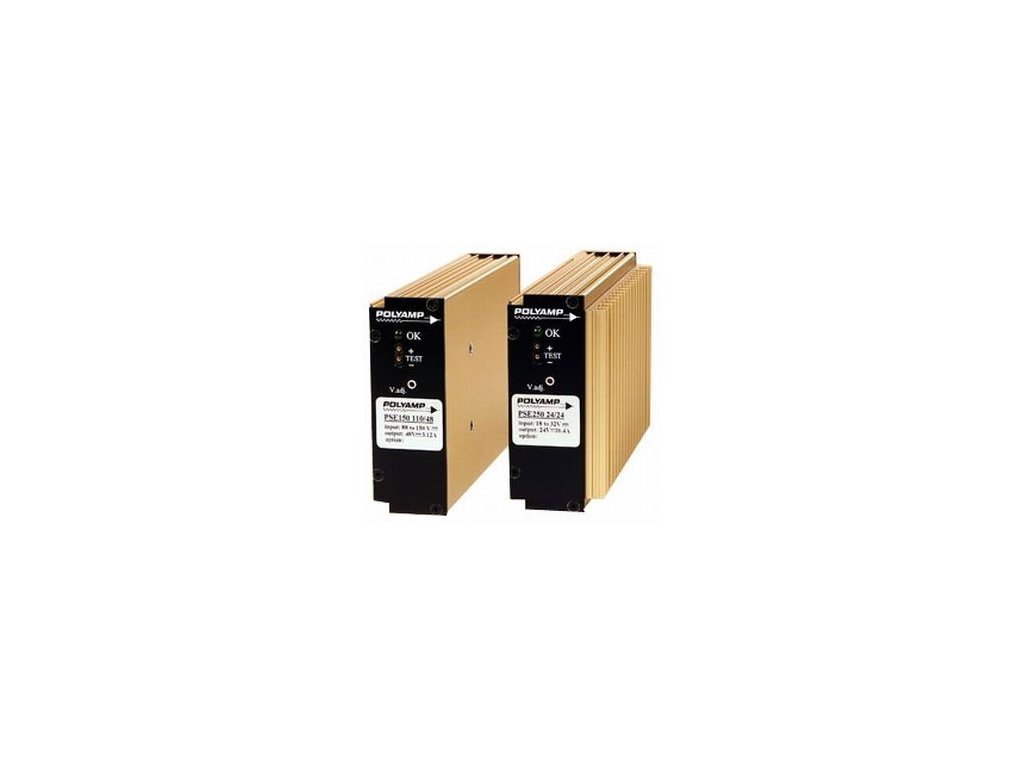

Polyamp PSE250 series
150 - 250 W DC/DC Converters Euroformat 8TE, 10TE 3HE, DIN and wall mounting
Input /Output
- Optimized input ranges
- One output 12 to 48Vd.c.
- Reverse voltage protecion on input
![Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/cart.png?65d4bf61)
![Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/card.png?65d4c037)
![Tovar skladom odosielame v deň objednávky (do 13:00)](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/parcel.png?65d4c238)
![Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/repair.png?65d4c103)
Operation
- Hig efficiency >88%
- Operating temperature range -25 to +70°C.
- Fully encapsulated IP30
- Under voltage alarm with logic signal
Features
- Conformal coating.
- Accessible from frontpanel:
- Adjust the output voltage
- Measure the output voltage
- Output OK status green LED
EMC
- EN61000-6-3 Emission
- EN61000-6-2 Immunity
- EN/IEC61000-4-4, 4kV.
- EN/IEC61000-4-5 level 2 & 3.
Input range
Nominal input |
Input range |
Stop level |
Code |
24 Vd.c. |
18 to 32V |
<16.8Vd.c. |
24 |
48 Vd.c. |
38 to 60V |
<33.6Vd.c. |
48 |
110 Vd.c. |
88 to 150V |
<77Vd.c. |
110 |
220, 250 Vd.c. |
187 to 300V |
<154Vd.c. |
220 |
Input voltage range: The range where we guaranty full operation, Vout +10%, Aout +5%.
Stop level: The converter works down to the stop level, the output might drop to -10% of nominal output.
Input voltage ranges that meets Railway standard EN50155/IEC60571 or other standards, can be provided on request.
Output |
||
Voltage |
Current |
Power |
12V |
12.5A |
150W |
13.2V |
11.3A |
150W |
15V |
10.0A |
150W |
24V |
8.3 - 10.4A |
200 - 250W |
48V |
4.1 - 5.2A |
200 - 250W |
Output ratings and type code
Output |
Input |
||||||
Voltage |
Current |
Power |
18 - 32V |
38 - 60V |
88 - 150V |
175 - 300V |
Case |
12V |
12.5A |
150W |
PSE150 24/12 |
PSE150 48/12 |
PSE150 110/12 |
PSE150 2220/12 |
8TE |
13.2V |
11.3A |
150W |
PSE150 24/13.2 |
PSE150 48/13.2 |
PSE150 110/13.2 |
PSE150 220/13.2 |
8TE |
15V |
10.0A |
150W |
PSE150 24/15 |
PSE150 48/15 |
PSE150 110/15 |
PSE150 220/15 |
8TE |
24V |
8.3A |
200W |
PSE200 24/24 |
PSE200 48/24 |
PSE200 110/24 |
PSE200 220/24 |
8TE |
24V |
10.4A |
250W |
PSE250 24/24 |
PSE250 48/24 |
PSE250 110/24 |
PSE250 220/24 |
10TE |
48V |
4.1A |
200W |
PSE200 24/48 |
PSE200 48/48 |
PSE200 110/48 |
PSE200 220/48 |
8TE |
48V |
5.22.78A |
250W |
PSE250 24/48 |
PSE250 48/48 |
PSE250 110/48 |
PSE250 220/48 |
10TE |
Other output voltage available on demand.
How to read our product code:
E.g. PSE250 48/24
PSE250 = familiy code
48 = input voltage range 48
24 =output voltage24V
