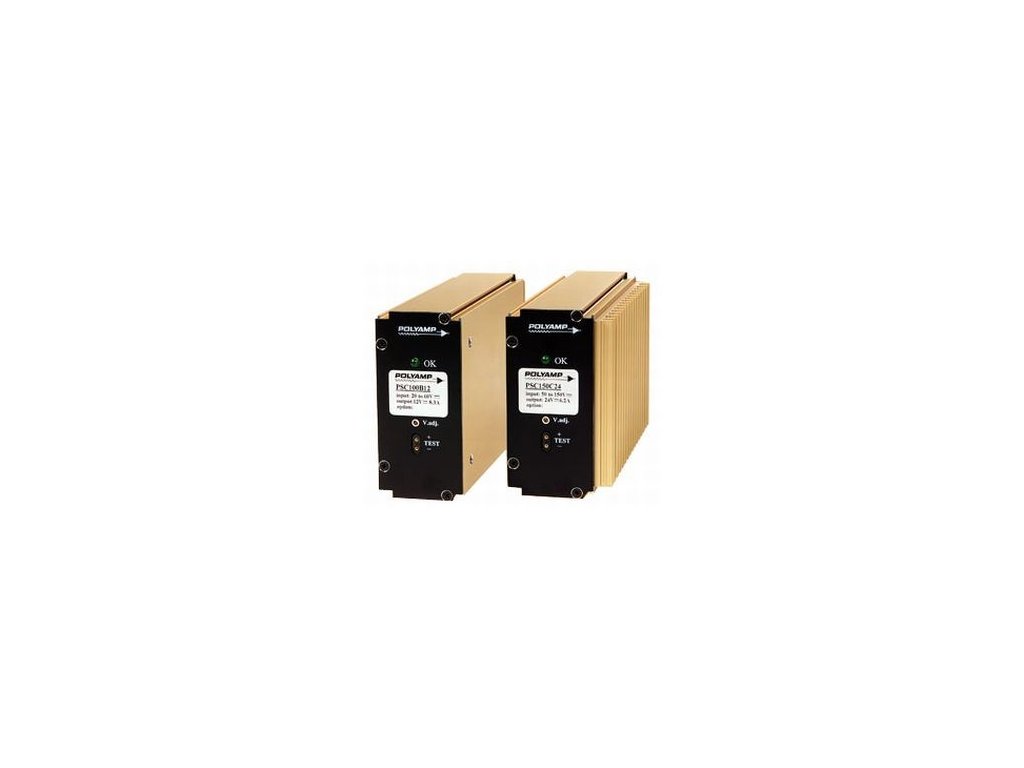

Polyamp PSC100, PSC150, PSC240 series
AC/DC 100 - 240W power supply PSU, Euro format, wall chassis, DIN mount
Input /Output
- One output 5 to 110V
- 110 or 230Va.c. input or world wide ACW
- Input frequency 48 - 400Hz
- Mechanical and pin compatible version with DC input.
![Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/cart.png?65d4bf61)
![Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/card.png?65d4c037)
![Tovar skladom odosielame v deň objednávky (do 13:00)](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/parcel.png?65d4c238)
![Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.](https://cdn.myshoptet.com/usr/www.elso.sk/user/banners/repair.png?65d4c103)
Operation
- High efficiency.
- Operating temperature range-25 to +70°C 100% load
- Fully incapsulated IP30
- Convection cooled
Features
- Conformal coated.
- Under voltage alarm with open collector, optional relay output.
- Accessible from the front panel:
- Output voltage adjustment
- Output voltage measurment.
- Output OK green LED
EMC
- EN61000-6-3 Emission.
- EN61000-6-2 Immunity.
- EN/IEC61000-4-4, 4kV.
- EN/IEC61000-4-5 level 2&3.
Nominal input |
Input voltage range |
Code |
110, 127, 230 Va.c. |
85 till 264 Va.c. |
ACW |
100, 110 Va.c. |
85 till 135 Va.c. |
ACR |
220, 230, 240 Va.c. |
176 till 264 Va.c. |
AC |
Output voltage ratings and type code
Output |
Input |
|||||
Voltage |
Current |
Power |
85 - 135Va.c |
176 - 264Va.c. |
85 - 264Va.c. |
Case |
5V |
20.0A1 |
100W |
-- |
PSC100AC5 |
PSC100ACW5 |
10TE |
5V |
30.0A1 |
150W |
-- |
PSC150AC5 |
PSC150ACW5 |
12TE |
12V |
8.3A |
100W |
-- |
PSC100AC12 |
PSC150ACW12 |
10TE |
12V |
12.5A |
150W |
-- |
PSC150AC12 |
PSC150ACW12 |
12TE |
13.2V |
7.4A |
100W |
-- |
PSC100AC13.2 |
PSC100ACW13.2 |
10TE |
13.2V |
11.0A |
150W |
-- |
PSC150AC13.2 |
PSC150ACW13.2 |
12TE |
15V |
6.7A |
100W |
-- |
PSC100AC15 |
PSC100ACW15 |
10TE |
15V |
10.0A |
150W |
-- |
PSC150AC15 |
PSC150ACW15 |
12TE |
15V |
16.0A |
240W |
PSC240ACR15 |
PSC240AC15 |
-- |
12TE |
24V |
4.2A |
100W |
-- |
PSC100AC24 |
PSC100ACW24 |
10TE |
24V |
6.3A |
150W |
-- |
PSC150AC24 |
PSC150ACW24 |
12TE |
24V |
10.0A |
240W |
PSC240ACR24 |
PSC240AC24 |
-- |
12TE |
48V |
2.1A |
100W |
-- |
PSC100AC48 |
PSC100ACW48 |
10TE |
48V |
3.1A |
150W |
-- |
PSC150AC48 |
PSC150ACW48 |
12TE |
48V |
5.0A |
240W |
PSC240ACR48 |
PSC240AC48 |
-- |
12TE |
110V |
2.2A |
240W |
PSC240ACR110 |
PSC240AC110 |
-- |
12TE |
Other outputs on demand.
How to read our type code:
E.g. PSC240 AC24
PSC240 = family code
AC = input voltage range code AC
24 = output voltage 24V
