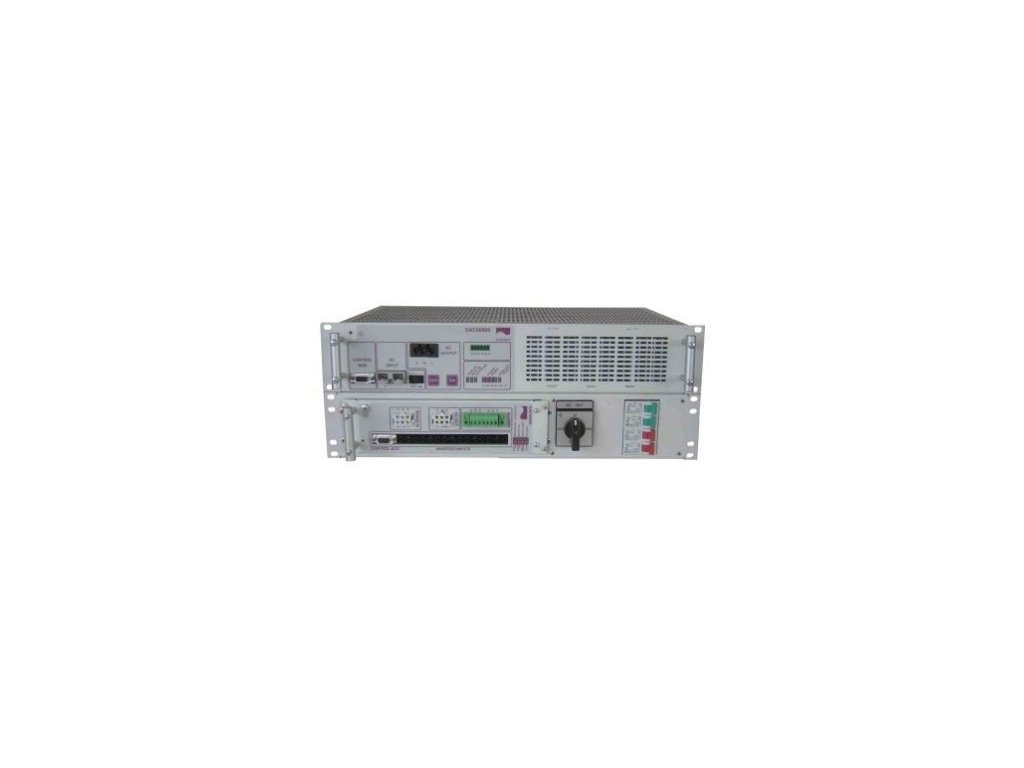

Polyamp 3U 19" Inverter system with Static switch and Manual by-pass
Inverter 24V, 48V, 60V, 1500VA base modules
Polyamp 3U 19" Inverter system with Static switch and Manual by-pass
Cena na požiadanie
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Široké možnosti
platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
Tovar skladom
odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.
- 24Vdc mobile or fixed installations - NEW!
- 48V/60Vdc telecom input
- 220 - 240Va.c. or 100-120Va.c models
- Frequency 50Hz/60Hz, adjustable 40-70Hz
- 230Va.c. 1500VA / 1200W per module
- 110Va.c. 750VA / 750W per module
- One module 1.5U 1/2 19" stackable
- Harmonic distorsion less than 2%
- Crest factor better than 2.5
- Static regulaion 0 - 100% ±3%
- Transient recovery better than 0.3ms
- Psofometric noise, input less than 0.2%
- Operating temperature range 0 to +45°C,
with derating to 60°C
Stand alone Inverter units
| Input voltage range | Nominal AC output | Nominal power | Cooling | Type |
| 20 - 32 Vd.c. | 230V;50Hz | 1000VA/600W | Conv | DAC60132VF |
| 20 - 32 Vd.c. | 230V;50Hz | 1200VA/800W | Fan | DAC60232VF |
| 20 - 32 Vd.c. | 110V;60Hz | 600VA/600W | Conv | DAC60012VF |
| 40 - 72 Vd.c. | 230V;50Hz | 1500VA/1200W | Fan | DAC62343FR |
| 40 - 72 Vd.c. | 110V;60Hz | 750VA/750W | Fan | DAC62514FR |
Plug-in units for stand alone or redundant operation
| Input voltage range | Nominal AC output | Nominal power | Cooling | Type |
| 20 - 32 Vd.c. | 230V;50Hz | 1000VA/600W | Conv | DAC62132VF |
| 20 - 32 Vd.c. | 230V;50Hz | 1200VA/800W | Fan | DAC62232VF |
| 20 - 32 Vd.c. | 110V;60Hz | 600VA/600W | Conv | DAC62012VF |
| 40 - 72 Vd.c. | 230V;50Hz | 1500VA/1200W | Fan | DAC60343FR |
| 40 - 72 Vd.c. | 110V;60Hz | 750VA/750W | Fan | DAC60343FR |
19"-1.5U Power frames
| Sub-rack for two inverter modules, 19” x 1.5U x 435mm, weight 4.3kg | MSR8170 |
| Sub-rack including AC-distribution 6xMCB and position for one inverter module, 19” x 1.5U x 435mm | ADU68130 |
| Coverplate set for empty module space in 19” 1.5U subrack | 8169274A |
