Fluke Calibration 9100S-D - MINI kalibračná piecka (–10 do 375°C)

  • Najmenšia kalibračná piecka na svete
  • Teplotný rozsah od –10°C do 375°C
  • Presnosť až ±0.25°C, stabilita ±0.05°C pri nastavenej teplote 0°C
Dostupnosť Opýtajte sa
Možnosti doručenia
Kód: 1885169
€3 051,60 €2 543 bez DPH
Fluke Calibration 9100S-D - MINI kalibračná piecka (–10 do 375°C)
Fluke 9100S-D - MINI kalibračná piecka (–10 do 375°C);Fluke 9100S-D - MINI kalibračná piecka (–10 do 375°C)
Cena na požiadanie
Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
Široké možnosti
platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
Tovar skladom odosielame v deň objednávky (do 13:00)
Tovar skladom
odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.

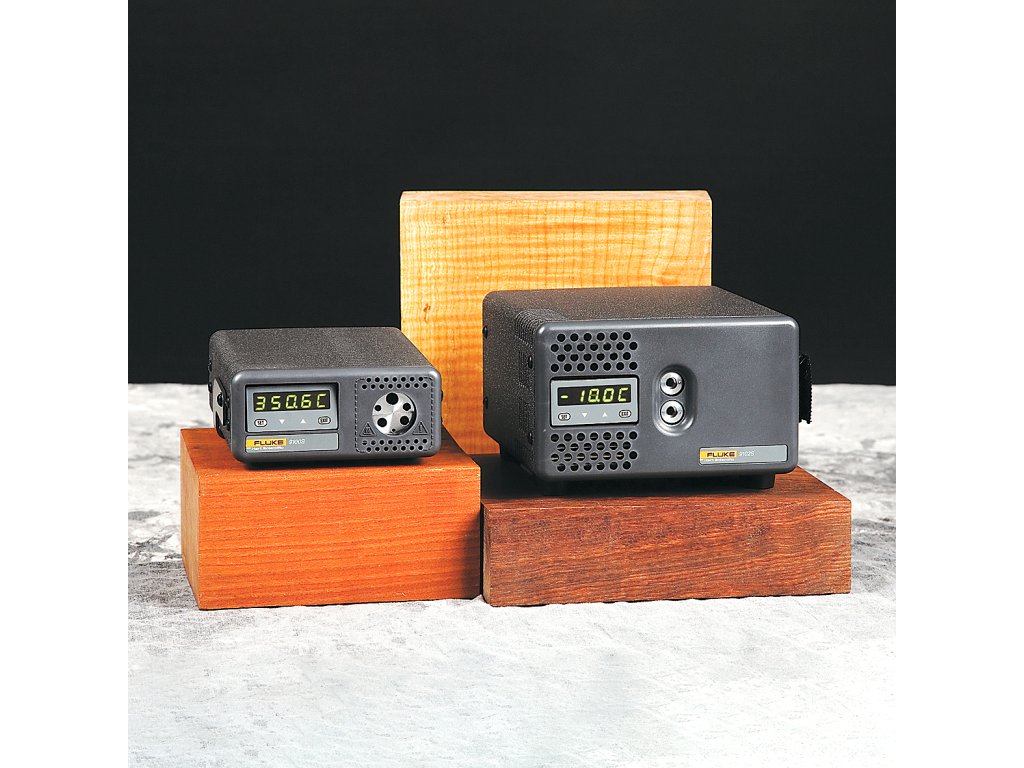

Hart’s line of portable dry-wells is incredible. They’re the smallest, lightest, and most portable dry-wells in the world. And now they"re better than ever!

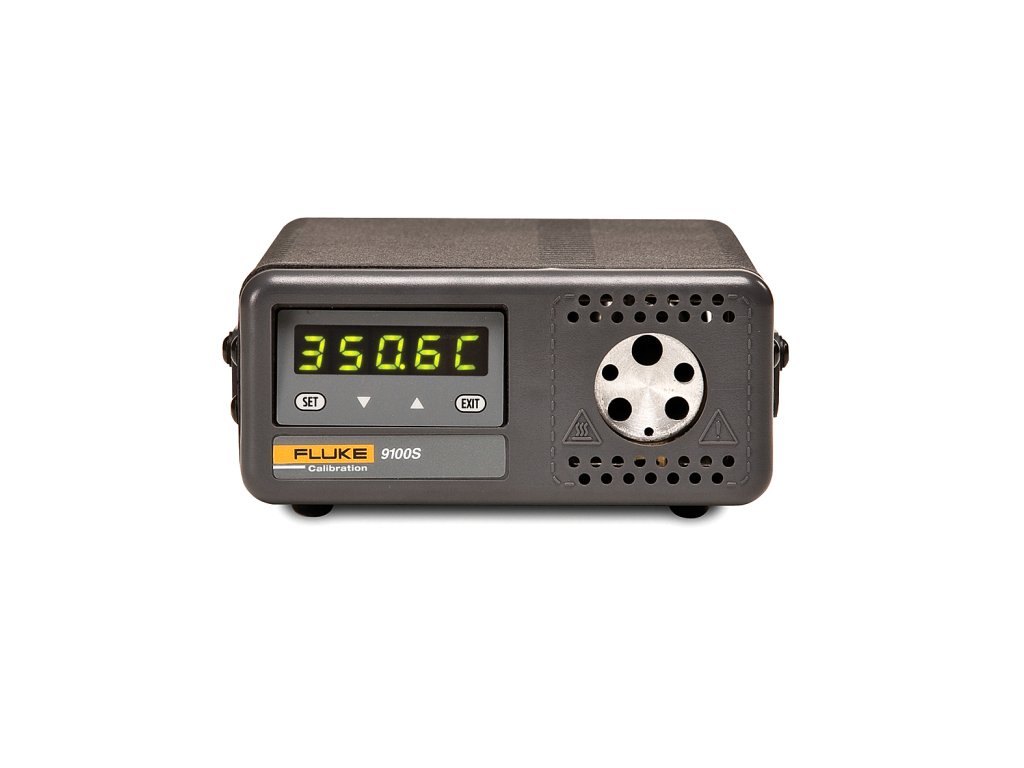

9100S Dry-Well

Since we introduced the world’s first truly handheld dry-well, many have tried to duplicate it—in vain. Despite its small size (2¼ inches high and 5 inches wide) and light weight, the 9100S outperforms every dry-well in its class in the world.

It’s simple and convenient, too. Anyone can learn to use one in less than 15 minutes. It has a range to 375°C (707°F) and is perfect for checking RTDs, thermocouples, and small bimetal thermometers in the field.

Plug it in, switch it on, set the temperature with the front-panel buttons, and insert your probe into the properly sized well. Compare the reading of your device to the display temperature or to an external reference, and the difference is the error in your device. With a proprietary Hart Scientific temperature controller, the 9100S  has a display resolution of 0.1 degrees, an accuracy of ±0.5°C, a stability of ±0.1°C, and a stabilization time of just five minutes.


9102S Dry-Well

 For work in the temperature range of –10°C to 122°C, Hart’s Model 9102S  dry-well is another first in the industry, featuring stability to ±0.05°C.

This dry-well is only four inches high and six inches wide, achieves temperatures as low as –10°C, includes a NIST-traceable calibration, and is stable to ±0.05°C. The Model 9102S is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.

The 9102S has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size. The 9102S also has a battery pack option that gives you approximately four hours of field use when AC power is unavailable.

Specifications

9100S 9102S

Range

35 °C to 375 °C (95 °F to 707 °F)

–10 °C to 122 °C (14 °F to 252 °F) at 23 °C ambient

Accuracy

±0.25 °C at 50 °C; ±0.25 °C at 100 °C; ±0.5 °C at 375 °C

±0.25 °C

Stability

±0.07 °C at 50 °C; ±0.1 °C at 100 °C; ±0.3 °C at 375 °C

±0.05 °C

Well-to-Well Uniformity

±0.2 °C with sensors of similar size at equal depths within wells

Heating Times

ambient to 375 °C: 9.5 minutes

ambient to 100 °C: 10 minutes

Stabilization

5 minutes

7 minutes

Cooling Times

375 °C to 100 °C: 16 minutes

ambient to 0 °C: 10 minutes

Well Depth

102 mm (4 in);
1.6 mm (1/16 in) hole is 89 mm (3.5 in) deep

102 mm (4 in)

Removable Inserts

N/A

Available in sizes from 1.6 mm (1/16 in) to 11.1 mm (7/16 in) [6.4 mm (1/4 in) and 4.8 mm (3/16 in) included]

Power

115 VAC (±10%), 55–65 Hz, 1.5 A or
230 VAC (±10%), 0.8 A, 45–55 Hz, 175 W

94-234 VAC (±10 %), 50/60 Hz, 60 W; or 12 VDC

Size (HxWxD)

57 x 125 x 150 mm
(2.25 x 4.9 x 5.9 in)

99 x 140 x 175 mm
(3.9 x 5.5 x 6.9 in)

Weight

1 kg (2 lb. 3 oz.)

1.8 kg (4 lb.)

Computer Interface

RS-232 included with free Interface-it software

NIST-Traceable Calibration

Data at 50 °C, 100 °C, 150 °C, 200 °C, 250 °C, 300 °C, and 375 °C

Data at –10 °C, 0 °C, 25 °C, 50 °C, 75 °C, 100 °C, and 122 °C




Ordering Information - 9100S

9100S-A

HDRC Handheld Dry-Well A

9100S-B

HDRC Handheld Dry-Well B

9100S-C

HDRC Handheld Dry-Well C

9100S-D

HDRC Handheld Dry-Well D

9300

Rugged Carrying Case

Ordering Information - 9102S

9102S

HDRC Handheld Dry-Well

3102-0

Insert, blank

3102-1

Insert, 1/16 in (1.6 mm)

3102-2

Insert, 1/8 in (3.2 mm)

3102-3

Insert, 3/16 in (4.8 mm)

3102-4

Insert, 1/4 in (6.4 mm)

3102-5

Insert, 5/16 in (7.9 mm)

3102-6

Insert, 3/8 in (9.5 mm)

3102-7

Insert, 7/16 in (11.1 mm)

3102-8

Insert, 5/32 in (4 mm)

9320A

External Battery Pack

9308

Carrying Case
