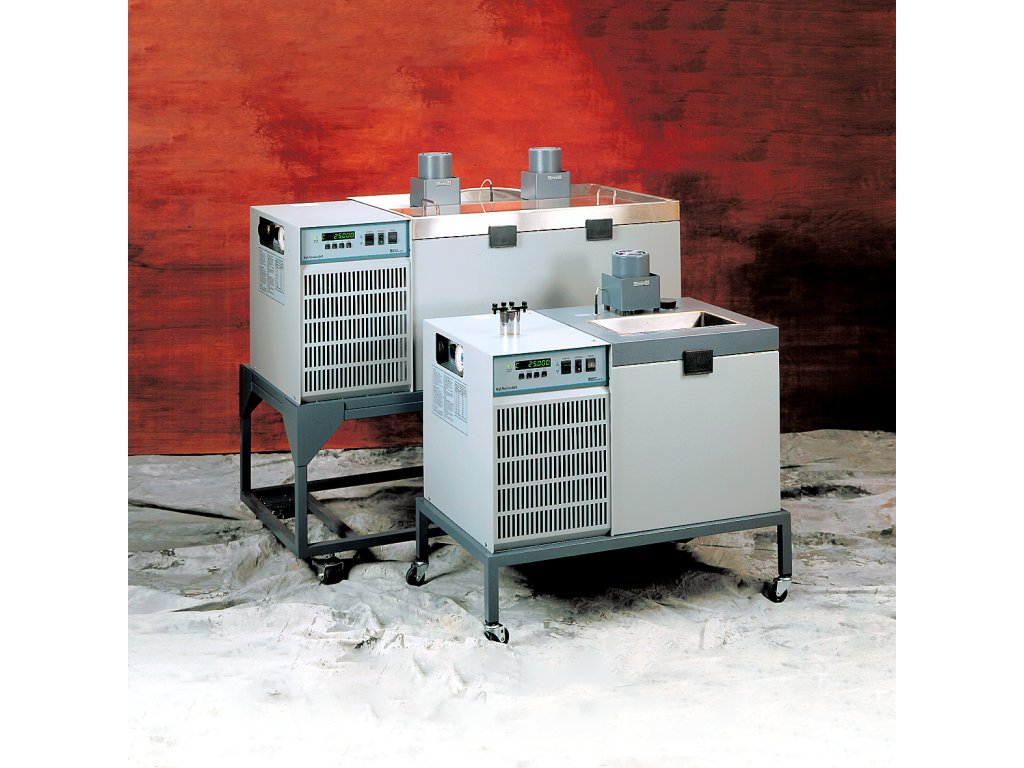

Fluke Calibration 7009 - Resistor Bath, high capacity

Regardless of the size and number of standard resistors you have to maintain, Hart has a bath that will do the job for you. Choose one of the three models described here or call us for information on other sizes.

Like all Hart baths, these resistor baths have unbeatable stability and uniformity. No other baths limit long-term and short-term drift—as well as gradients—better than these baths. Hart’s proprietary controller senses temperature changes as small as 0.00001 °C. This controller is the industry’s best-selling temperature calibration controller for bath retrofits because it improves the stability of almost every other poorly performing bath. So why not buy the best to begin with?

Each bath can be delivered with any size resistor rack you want (a standard model is included with each bath), and the Model 7015 has several other special features that make your work easier.

7015

The 7015 has a 95-liter tank and a temperature range of 0 °C to 50 °C. It’s stable to ±0.0007 °C.

It has a one-piece stainless steel lid designed to drain spills and splashes back into the bath as you remove resistors. It has a large access opening to make handling large resistors, like the Thomas design standard resistors, easier. The tank has an electrically isolated resistor shelf.

This is truly a quality resistor bath, and it’s backed by Hart’s industry-leading service.

7009

This is a large bath with a tank 27½ inches long by 22 inches wide. It has a temperature range of 0 °C to 50 °C and a stability of ±0.0007 °C.

For a bath this size and with these specs, it is priced extremely well. The Model 7009’s large tank can handle many resistors of any size.

7108

This is the quietest resistor bath you’ve ever heard. The 7108 uses thermoelectric (Peltier) modules to provide heating and cooling over its range from 20 °C to 30 °C. Without a compressor, noise is dramatically reduced. Power requirements are also lower, so you save money running the bath and add less heat load to your lab.

With a 51-liter (13.2-gal) tank, the 7108 holds plenty of resistors. A large 14" x 14" (356 x 356 mm) access opening allows you to easily move resistors in and out of the bath. A resistor rack comes with each unit that fits across the bottom of the tank. Made from hard-anodized perforated aluminum, this rack maintains the necessary electrical isolation between your resistors.

Hart sells a complete selection of fluids for your bath. You can find these here.
