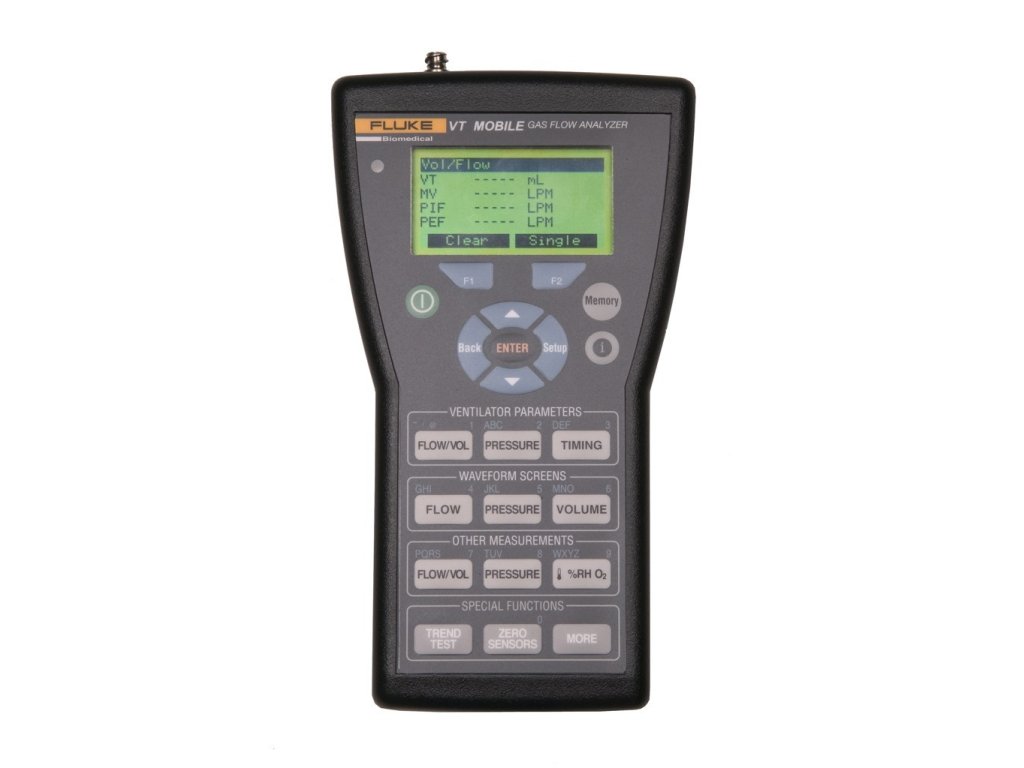

    Fluke Bm. VT Mobile - Merač prietoku plynov

    Značka: Fluke Biomedical

    VT MOBILE is a compact and portable general-purpose gas-flow analyzer designed to meet the needs of the traveling technician or engineer. This versatile tool evaluates performance of a wide variety of medical gas-flow/pressure devices and measures 16 ventilator parameters.
    The easy-to-use front panel has onboard graphing ability, allowing technicians to view waveforms right on the tool"s screen. Test results can be stored in the unit and uploaded to a computer later for viewing or printing using VT for Windows. The VT for Windows PC software provides, among other features, simultaneous display of all 16 ventilator parameters to speed performance testing and other evaluations. EC.6.20 now requires completion of 100% of life-support device preventive maintenance every year. VT MOBILE can help you meet those requirements. The base unit measures high- and low-flow ranges, volume, pressure, and oxygen concentration. Additionally, the temperature and relative humidity option can be ordered separately to ensure the most accurate gas-flow measurements. VT MOBILE can be purchased with the ACCU LUNG portable, precision test lung, or other precision and non-precision test lungs, each of which can also be purchased separately.

    Dostupnosť Opýtajte sa
    Možnosti doručenia
    Kód: 1330
    €1 €0,83 bez DPH
    Fluke Bm. VT Mobile - Merač prietoku plynov
    Značka: Fluke Biomedical
    Fluke Bm. VT Mobile - Merač prietoku plynov
    Ukončená výroba
    Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
    Doprava zadarmo
    pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
    Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
    Široké možnosti
    platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
    Tovar skladom odosielame v deň objednávky (do 13:00)
    Tovar skladom
    odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
    Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
    Servis a kalibrácia
    teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.
    • Bidirectional flow (high- and low-flow ranges), volume, vacuum, pressure, and oxygen-concentration measurements
    • 16 ventilator parameter measurements
    • Trending and statistical analysis of all measured values
    • Onboard graphical display
    • Portable and compact
    • RS232 for computer control
    • Memory for storing results
    • VT for Windows PC software
    • Optional sensor assembly for temperature and humidity measurements
      >   Biomedical   >    >   Gas Flow   >
    VT MOBILE Gas Flow Analyzer
    Technical Specifications
    Display
      64 x 128 pixels, reflective LCD, blue on yellow
    Operational Modes
      Standalone without any PC software or with the VT for Windows PC software.
    Gas Types
      Air, N 2 , N 2 O, CO 2 , O 2 , N 2 O bal O 2 , N 2 bal O 2
    Battery Power Supply
    Maximum Over-Voltage: 15 V dc
    Input Voltage Range: 9 V dc
    Power Consumption: < 70 mA
    Battery Life: 7 hours
    External Power Supply
    Maximum Over-Voltage: 264 V ac
    Input Voltage Range: 100 to 240 V ac
    Input Frequency Range: 50/60 Hz
    Output Voltage: 12 V to 15 V
    Output Current: 1.2 A
    Fuse Rating: N/A
    Low-Pressure Port
    Maximum Applied Pressure: 5 psi
    Operating Pressure (Differential): - 20 cmH 2 O to 120 cmH 2 O
    Operating Pressure (Common-Mode): N/A
    Span Accuracy: + 2 % of reading or 1.5 mmHg
    Frequency Response: 10 Hz
    Resolution: 0.1 mmHg
    Sample Rate: 100 Hz
    Fittings: Flow connector with 2 tubes "T" connected to a single Luer fitting
    Note: No fluid may be applied to port
    High-Pressure Port
    Maximum Applied Pressure: 125 psi
    Operating Pressure: - 2 psi to 100 psi
    Span Accuracy: + 2 % of reading or + 0.2 psig
    Frequency Response: 10 Hz
    Resolution: 0.1 psi
    Sample Rate: 100 Hz
    Fittings: Single port, Luer lock, stainless steel
    Note: No fluid may be applied to port
    Airway Pressure
    Maximum Applied Pressure: 5 psi
    Operating Pressure: - 20 cmH 2 O to 120 cmH 2 O
    Span Accuracy: + 2 % of reading or + 0.5 cmH 2 O
    Frequency Response: 25 Hz
    Resolution: 0.1 cmH 2 O
    Sample Rate: 100 Hz
    Fittings: Internally connected to flow-sensor pressure lines
    High-Flow Port
    Maximum Flow Rate (absolute value): 200 lpm
    Operating Flow Range: +/- 200 lpm
    Accuracy: +/- 3 % of reading or +/- 2 % of range
    Floor for Absolute Accuracy: 25 lpm
    Resolution: 0.01 lpm
    Frequency Response: 25 Hz or t 10-90 < 40 ms
    Sample Rate: 100 Hz
    Dynamic Resistance: < 2 cmH 2 O @ 60 lpm
    Low-Flow Dropout: 2.5 lpm
    Breath-Detect Threshold: 4 lpm
    Volume Range: +/- 60 l
    Tidal Volume Accuracy: +/- 3 % of reading or +/- 20 ml, whichever is greater
    Fittings: 15 mm OD/ID, 1:40 conical male
    Low-Flow Port
    Maximum Flow Rate (absolute value): 35 lpm
    Operating Flow Range: + 25 lpm
    Accuracy: + 3 % of reading or + 1% of range
    Floor for Absolute Accuracy: 3 lpm
    Resolution: 0.01 lpm flow > 1 lpm
    Frequency Response: 25 Hz or t 10-90 < 40 ms
    Sample Rate: 100 Hz
    Dynamic Resistance: < 2.5 cmH 2 O @ 5 lpm
    Low-Flow Dropout: 0.24 lpm
    Breath-Detect Threshold: 1 lpm
    Volume Range: +/- 60 l
    Volume Accuracy: + 3 % of reading or + 2 ml
    Fittings: 15 mm OD/ID, 1:40 conical male
    Oxygen Measurement
    Range: 0 to 100 %
    Accuracy: + 2 % full-scale output
    Resolution: 0.1 % O 2
    Frequency Response: 15 s (t 10-90 )
    Sample Rate: 100 Hz
    Calibration: Galvanic fuel cell
    Notes: Automatic partial pressure compensation for barometric and airway pressure changes
      Recommended interval for changing oxygen sensor is one year. However, sensor may last longer. During user calibration of the sensor, the VT MOBILE can detect if the sensor needs to be replaced.
    Barometric Pressure Measurement
    Range: 8 to 18 psia (400 mmHg to 900 mmHg)
    Accuracy: + 2 % of reading
    Resolution: 0.1 mmHg
    Frequency Response: < 5 s (t 10-90 )
    Sample Rate: N/A
    Calibration: Not required; however, device allows user calibration of offset
    Inspiratory and Expiratory Tidal Volume
    Resolution: 0.1 ml
    Range: 10 l
    Accuracy: ± 3 % expiratory minute volume
    Resolution: 0.001 lpm
    Range: 0 to 60 l
    Accuracy: ± 3 %
    Breath Rate
    Resolution: 0.1 BPM
    Range: 2 BPM to 150 BPM
    Accuracy: ± 1 % inspiratory-to-expiratory time ratio (I:E ratio)
    Resolution: 0.01 Range: 0.25 to 9.99
    Accuracy: ± 2 % or 0.1 s
    Peak Inspiratory Pressure
    Resolution: 0.1 cmH 2 O
    Range: ± 120 cmH 2 O
    Accuracy: + 3 % or 1 cmH 2 O
    Inspiratory Pause Pressure
    Resolution: 0.1 cmH 2 O
    Range: ± 120 cmH 2 O
    Accuracy: + 3 % or 1 cmH 2 O
    Mean Airway Pressure
    Resolution: 0.1 cmH 2 O
    Range: + 80 cmH 2 O
    Accuracy: + 3 % or 0.5 cmH 2 O
    Positive-End Expiratory Pressure (PEEP)
    Resolution: 0.1 cmH 2 O
    Range: - 5 to 40 cmH 2 O
    Accuracy: + 3 % or 0.5 cmH 2 O
    Peak Expiratory Flow
    Resolution: 0.01 lpm
    Range: 0 lpm to 150 lpm
    Accuracy: ± 3 % or 2 % of range
    Peak Inspiratory Flow
    Resolution: 0.01 lpm
    Range: 0 lpm to 150 lpm
    Accuracy: ± 3 % or 2 % of range
    Temperature
    Resolution: 0.1 ˚C
    Range: 0 ˚C to 50 ˚C
    Accuracy: ± 1 ˚C
    Units: ˚C, ˚F, ˚K
    Humidity
    Resolution: 0.1%
    Range: 0 % to 100%
    Accuracy: ± 5 %
    RS232 Serial Communications
      4-pin modular connector located on upper-left side of panel RS-232 compatible with the VT Plus for Windows software application (version 2.01.00 or higher.)
    Environmental Specifications
    Operating Temperature: 50 to 104 ˚F (10 to 40 ˚C)
    Storage Temperature: -13 to 122 ˚F (-25 to 50 ˚C)
    Operating Humidity: 0 to 80 % non-condensing at temperatures to 31 ˚C, decreasing linearly to 50 % relative humidity at 104 ˚F (40 ˚C)
    Storage Humidity: 0 % to 95 % non-condensing
    Operating Barometric: 7 psia to 18 psia
    Storage Barometric: -1000 to 10000 ft (787.9 mmHg to 522.7 mmHg)
    Dimensions (WxDxH)
      10 cm x 20 cm x 3.8 cm (4 in x 8 in x 1.5 in)
    Weight
      0.45 kg (1 lb)
