Fluke 1555 FC/Kit Gigaohmmeter - tester izolácie
| FLUKE-1550C | 5kV Insulation Tester |
| Fluke-1550C/KIT | 5kV Insulation Tester Kit |
| FLUKE-1555 | 10kV Insulation Tester |
| Fluke-1555/KIT | 10kV Insulation Tester Kit |
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Široké možnosti
platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
Tovar skladom
odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.

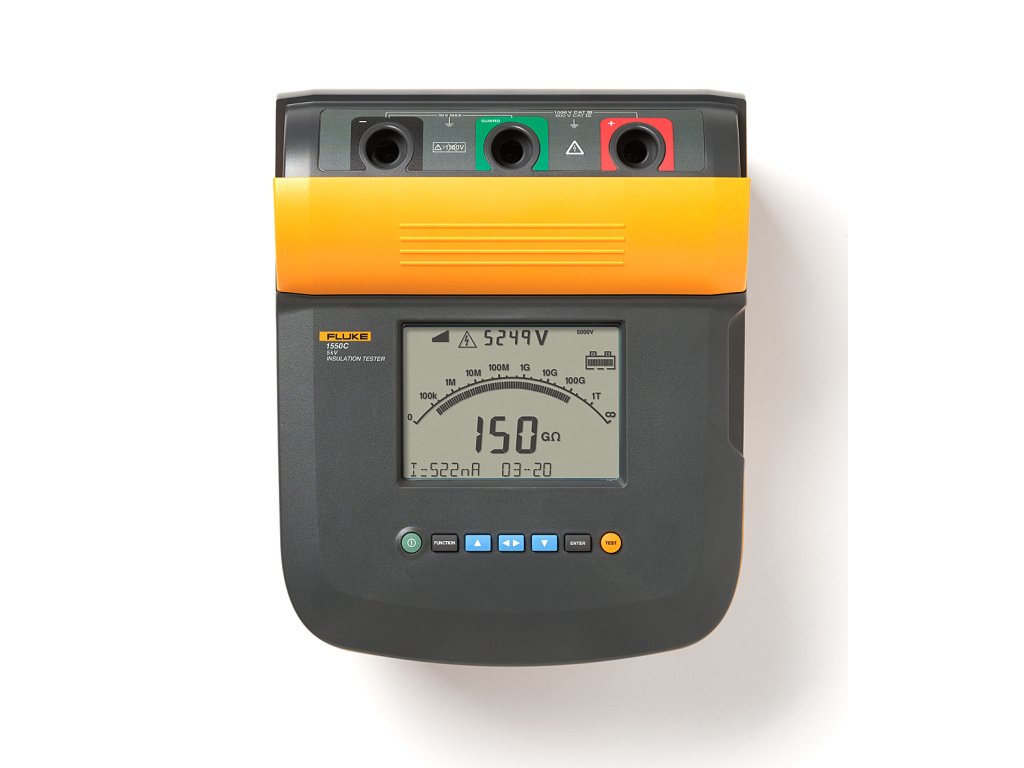

Fluke 1555 / Fluke 1550C Insulation Resistance Tester
Digital insulation testing up to 10kV
With these new insulation testers, customers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1555 and 1550C are perfect tools for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur.
Features and Benefits:
- Test voltages up to 10 kV provides solutions for all applications
- CAT III 1000 V, CAT IV 600 V safety rating
- Voltage breakdown detection alerts the user that voltage is present and gives the voltage reading up to 600 V ac or dc for increased user safety
- Selectable test voltages in 50 V steps from 250 to 1000 V, and 100 V steps above 1000 V
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
- Long battery life gives the user over 750 tests between charges
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Large digital/analog LCD for easy viewing
- Capacitance and leakage current measurement
- Ramp function for breakdown testing
- Resistance measurements up to 2TΩ
- Timer settings up to 99 minutes for timed tests
- 3-year warranty
Target Applications
- Insulation resistance/leakage current measurement
- Step voltage testing
- Dielectric discharge
- Dielectric absorption ratio
- Polarization index
- Ramp voltage

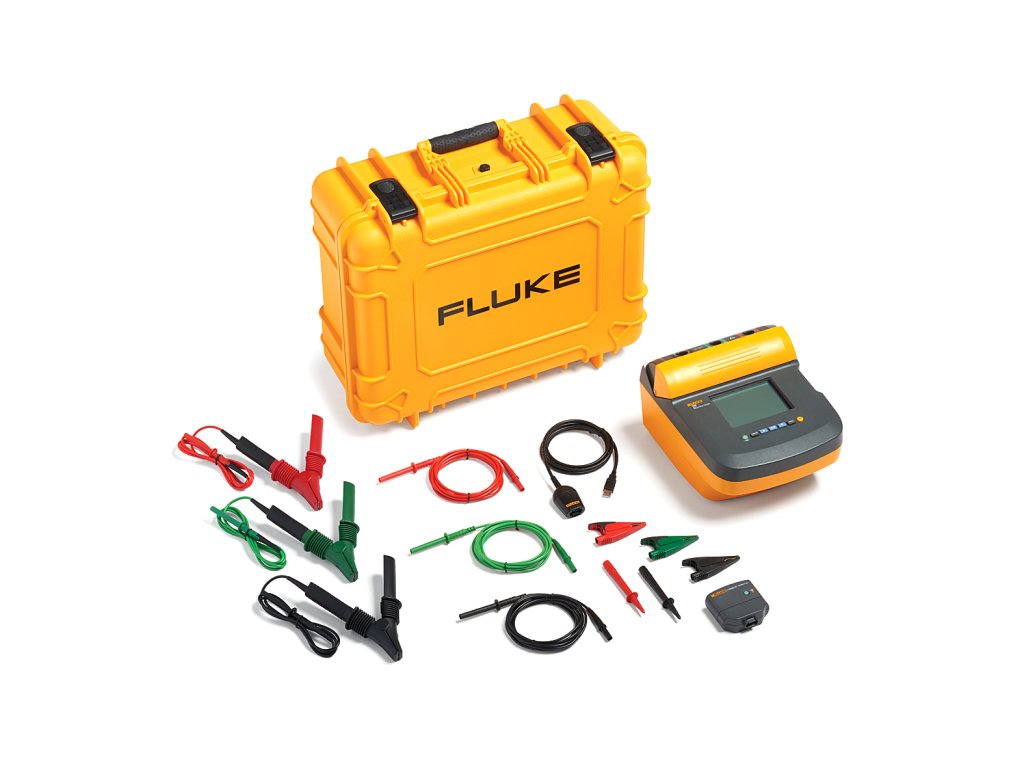

Included with the Unit
- Test cables with alligator clips (red, black, green)
- Infrared adapter with interface cable
- FlukeView Forms basic CD-ROM
- AC power cord
- Soft carrying case
- Users manual on CD-ROM
- Quick Reference card
- English manual
- USB-IR cable installation guide
- FlukeView Forms installation guide
- Kit includes: IP67 hard case instead of soft case, heavy duty alligator clips and certificate of calibration
Gigaohmeter, Megaohmmeter, giga ohm meter, mega ohm meter, megmet, gigaohm, megaohm, megmet
Dodatočné parametre
| Kategória: | Testery izolačného stavu |
|---|---|
| ? Meranie a zobrazenie: | Unikajúce prúdy, Kapacita, Odpor, Izolačný stav |
| Funkcie: | Data hold, Stĺpcový graf |
| ? Rozhranie: | Fluke Connect™ |
